홈 > 제조생산제품 > 배출가스 분석장치
배출가스 주문제작 가스 분석장치
NO NO2 NOx N2O CO CO2 CH4 SO2 SF6 O3 O2 H2S NH3 HCL... 기타 제조원문의 환영 Accuracy 1ppm ~ 0.01%, 0.1%, 1% (depends on sensor) Span drift NDIR : +/- 2% FS TCD : +/- 2% FS EC :+/-3% FS Repeatability NDIR : +/- 2% FS TCD : +/- 2% FS EC :+/-3% FS Zero drift NDIR : +/- 2% FS TCD : +/- 2% FS EC :+/-3% FS * Other range and component : consult factory Operational power : 220/110 VAC 50/60 Hz Operational temperature : 10 ~ 45 degC Sampling pressure : Atmospheric pressure Sampling flow rate : Less than 500ml/m ~ 1L/m (response time : less than 1 ~ 10 sec) ** No smapling pump uses for Low concentration analysis Display : Blue color visual touch screen measuring data, Max value hold, set time&date menu Data storage : SD card – up to 1000000 data storage – 1, 5, 30 minutes& 1hour interval PC download : by Hyperterminal or equivalent RS232 digital output & USB adaptor (RS485 option) Analogy output : DC or mA output (option) Operational Munu : standard(English) Option(Korean) Operational sampling gas temperature : 5 ~ 50 degC Operational sampling gas humidity : 0 ~ 75 % Dimension : - Poratable 380D x 205W x 180H mm (weight : 3 ~ 6 Kg asper the options) - Tabletop / Rack : 418D x 415W x 180H mm (weight : 4 ~ 7 Kg carrying case options) *Specification can be changed for the purpose of user’s requirement or upgrade without notice
※ 이미지를 클릭하시면 제품상세 정보를 확인하실 수 있습니다.

ㆍ전체 1

ㆍ제품정렬

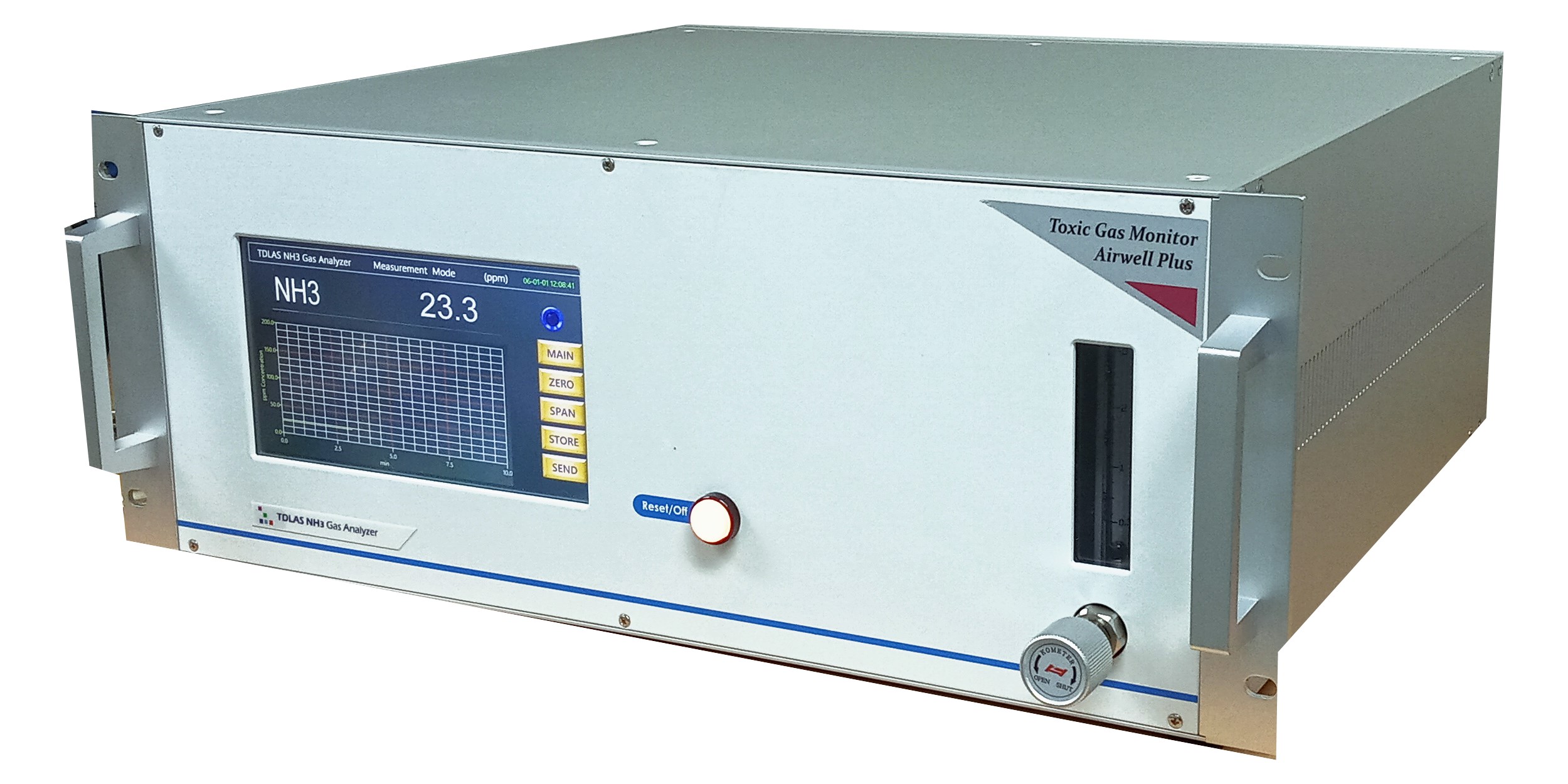

Toxic Gas Emission..
CO CO2 SO2 NO NH3 H2S O3 에..


1
